Parcel dimensioner · DWS system
QuboVision by SleuthX
Automatic volumetric measurement and weighing for parcels
Cube, weigh and photograph every parcel in under 2 seconds with ±1 cm accuracy. The dimensional data you need to price, optimise loading and stop measuring by hand.

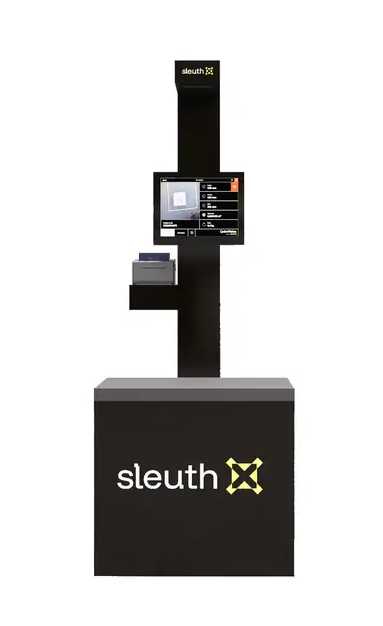

What is QuboVision?
The parcel dimensioner that automates your dispatch
QuboVision is a compact station designed for order preparation and shipping lines. It automatically captures dimensions, weight, and a photograph of every package, connecting with your ERP and carriers to generate labels and optimize rates in real time.
What does it capture & record?
All the data for every package, automatically
QuboVision automatically records the key data of each package to speed up shipping and ensure complete traceability.
3D Dimensions
Height, width, and length with ±1 cm precision. Measurement range from 5×5×5 cm to 60×80×80 cm.
Exact weight
Integrated scale up to 300 kg with ±50 g precision. Automatic calibration included.
Package photography
1 MP camera captures the package and carrier label for visual traceability.
Code reading
Built-in or wireless barcode reader. OCR on shipping labels for automatic identification.
Cloud logging
All data is stored in the SleuthX cloud: dimensions, weight, date/time, images, and logistics data.
Step-by-step process
How does it work?
An intuitive workflow designed to minimize time per package and maximize precision in every shipment.
Place the package
The operator places the package on the QuboVision platform. The system detects it automatically.
Simultaneous measurement and weighing
In less than 2 seconds, the three dimensions and weight of the package are captured with high precision.
Photography and code reading
The camera captures an image of the package and label. The reader identifies the barcode or reference.
Optimal rate calculation
The system connects with configured carriers and selects the most economical option based on weight, volume, and destination.
Label printing
The shipping label is automatically generated and printed with all package information and the selected carrier.
Key features
Technology that powers your shipping
Computer vision + AI
Deep learning algorithms for precise volumetric measurement and automatic package recognition.
High-precision scale
Up to 300 kg capacity with ±50 g precision. Automatic calibration ensures reliable measurements.
Automatic photography
Package and carrier label image capture. Cloud storage for complete traceability.
Encryption and security
Encrypted data transmission and secure storage in the SleuthX cloud, complying with European data protection regulations.
Multiple connectivity
Ethernet, Wi-Fi, and USB. Integration with ERP, WMS, and carriers through REST API or dedicated connectors.
Data export
Export data via USB or from the cloud. Custom reports and real-time operational dashboards.
Key benefits
Why choose QuboVision?
Plug & Play
No installation required. Connect to power and internet and start operating in minutes.
Shipping cost savings
Automatic selection of the most economical carrier based on volumetric weight and actual destination.
Complete traceability
Every package is logged with dimensions, weight, photograph, time, and assigned carrier.
Error reduction
Eliminates manual measurement and its inaccuracies. Prevents claims due to incorrect data.
Flexible integration
Adapts to work tables, counters, or preparation lines. With or without base.
SleuthX Cloud
Visualize, analyze, and export all operational information from the cloud platform.

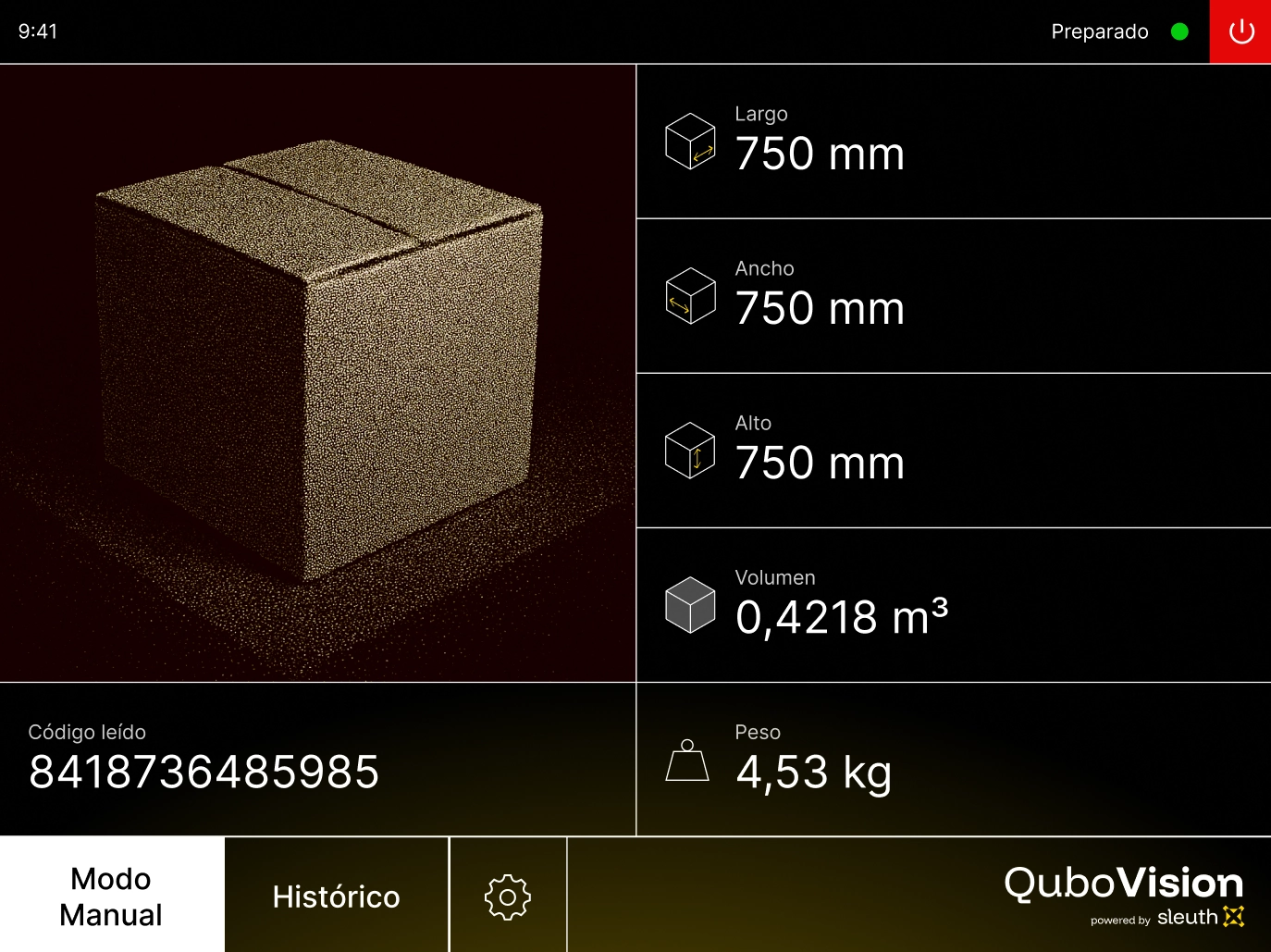

User interface
Intuitive control panel
Integrated touch interface displaying real-time dimensions, weight, photography, and status of each processed package. Direct access to history, carrier configuration, and data export.
Technical Specs
Technical data for QuboVision
| Min. package | 5 × 5 × 5 cm |
|---|---|
| Max. package | 60 × 80 × 80 cm |
| Precision | ±1 cm |
| Capacity | 300 kg |
|---|---|
| Precision | ±50 g |
| Auto calibration | Yes |
| Resolution | 1 MP |
|---|---|
| Capture | Package + label |
| OCR | Yes |
| Footprint | 80 × 60 cm |
|---|---|
| Height | 220 cm |
| Power supply | 220V · CE |
| Ethernet | Yes |
|---|---|
| Wi-Fi | Yes |
| USB | Yes |
| Label printer | Yes |
|---|---|
| Code reader | Yes |
| SleuthX Cloud | Optional |
System integration
Connect with your ecosystem
QuboVision integrates with major enterprise management systems and logistics operators to automate package shipping.
ERP
Bidirectional synchronization with SAP, Oracle, Dynamics, and other ERPs to validate orders and update statuses.
WMS
Direct connection with warehouse management systems to coordinate order preparation and shipping.
Carriers
Integration with multiple logistics operators. Automatic selection of the most economical rate per shipment.
API REST
Documented REST/JSON API for custom integration with any platform or e-commerce.
Use cases
Sectors that trust QuboVision
E-commerce and fulfillment
Online order preparation lines where every package needs to be measured, weighed, and labeled before shipping.
Logistics operators (3PL)
Multi-client distribution centers managing thousands of daily shipments with multiple carriers.
Retail and distribution
Stores and warehouses that need to ship goods to end customers or sales points with cost control.
Industry and manufacturing
Shipping parts, components, or finished products with complete traceability of dimensions and weight.
Frequently Asked Questions
General Questions (FAQ)
A parcel dimensioner, or DWS system (dimension, weigh, scan), is equipment that automatically measures the length, width and height of every parcel, weighs it and reads its label in a single operation, usually in under two seconds. It replaces the tape measure and the manual scale at the dispatch point, so every shipment leaves with its real measurements and weight on record rather than an estimate. QuboVision measures to ±1 cm and weighs to ±50 g, handling parcels from 5 × 5 × 5 cm up to 60 × 80 × 80 cm and 300 kg.
Dimensional weight, also called volumetric or chargeable weight, is the weight a carrier assigns to a shipment based on the space it takes up in the vehicle rather than what it weighs on the scale. It is calculated by multiplying length by width by height and dividing the resulting volume by a conversion factor each carrier sets in its tariff. The carrier bills the greater of the two figures, actual or dimensional weight, so a light but bulky parcel pays for its volume. When that volume is not measured at source, the carrier re-measures it on its own platform and applies a surcharge; measuring it before dispatch with a dimensioner removes that discrepancy and makes the invoice checkable line by line.
The standard manufacturing time is 2 weeks from order confirmation. This is in addition to shipping time depending on destination.
SleuthX enables integration with multiple logistics operators. Selection can be customized based on your commercial agreements. Additionally, the system automatically chooses the cheapest option for each shipment based on weight, volume, and destination.
All information is encrypted and stored on secure servers in the SleuthX cloud, complying with European data protection standards.
Dimensions (height, width, length), weight, measurement date and time, package ID or reference, suggested carrier and cost, history of measured packages, and integration with your logistics software (optional).
Yes. We can adapt the system to your needs, including integration with ERPs or e-commerce platforms, adjustments in base type or color, and custom reports from the cloud.
QuboVision
QuboVision automatically measures the dimensions and weight of packages. Thanks to its direct connection with the shipping cloud, it calculates in real time the most economical shipping option with available carriers.
Yes. The machine is integrated with the SleuthX cloud, where all measured package information is stored: dimensions, weight, date/time, images, and logistics data. This integration also allows optimizing shipping based on current carrier rates.
No. The machine requires no installation. It's designed to be plug & play: simply connect it to power and internet (via cable or Wi-Fi) to start using it.
Yes. It can be purchased with a base (as an autonomous station) or without a base, ideal for integration into work tables, counters, or order preparation lines.
The machine includes a high-precision scale (±50 g) with capacity up to 300 kg, ideal for avoiding overage charges in shipping rates.
Ready to optimize your shipping?
Take your package line to the next level
Request a personalized demo and discover how QuboVision can reduce shipping times and costs in your operations.
