Pallet dimensioner with volumetric measurement and weighing
Measure, weigh, photograph and validate every pallet in under 2 seconds without slowing down dispatch. ±3 cm accuracy up to 240 cm high, with the data ready for your ERP, WMS or TMS.
What is PalletVision
Far more than a pallet dimensioner
PalletVision is a pallet measurement system that brings together in a single station everything you do today in four steps: 3D volumetric dimensioning, weighing, automatic photography of the goods and AI-driven rule validation. Every pallet leaves with its dimensions, its weight, its photographic evidence and its validation result in one traceable record. Built for demanding industrial environments, it runs 24/7 with no manual intervention.

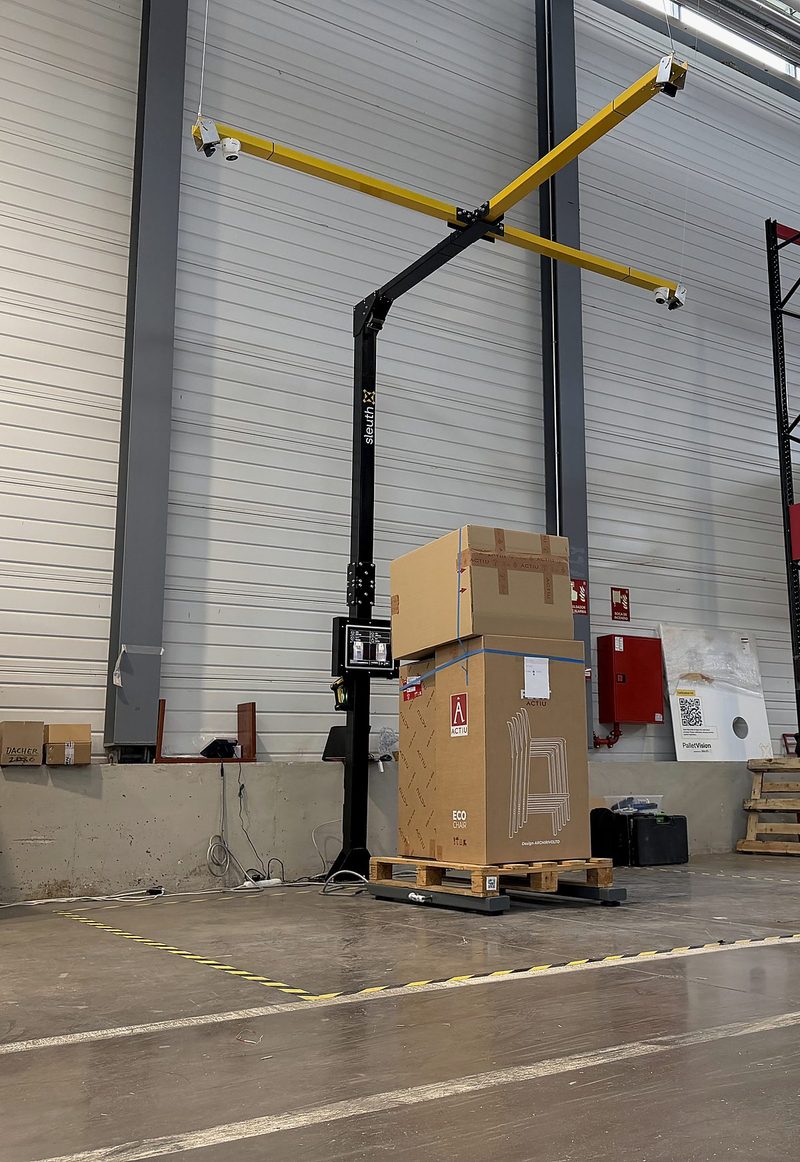

Measurement in action
Volumetric pallet measurement in real time
PalletVision captures the length, width and height of every pallet in under 2 seconds and calculates the volume automatically with ±3 cm accuracy. Dimensioning works just as well with irregular loads, transparent film, black shrink wrap or off-centre goods, the exact cases where single-sensor systems fail.
What it checks and validates
Dimensioning, weighing and control in a single step
3D volumetric dimensioning
Captures pallet length, width and height in under 2 seconds with ±3 cm accuracy. Automatic volume and dimensional weight calculation to optimise loading, transport and billing.
Integrated automatic weighing
Industrial scale integrated with capacity up to 2,000 kg and ±500 g precision. Simultaneous weighing with measurement, no additional steps.
Merchandise photography
4K cameras automatically capture 360° images of the pallet. Visual evidence for documentation, claims, and audit.
Anomaly detection
Automatic identification of overweight, oversize, and load instability. Real-time alerts to prevent rejections and extra costs.
Intelligent rules engine
Configure custom business and operational rules. Automatic validation based on weight, dimension, customer, or destination criteria.
Traceability and documentation
Each pallet generates a complete record: measurements, weight, photographs, validation result, and timestamp. Exportable and auditable.
How it works
How to measure pallets automatically in 5 steps
PalletVision operates fully autonomously. The pallet enters the station and in under 2 seconds the control cycle is completed without manual intervention.
Entry into control zone
The pallet enters the PalletVision station via automatic or manual transport. The system detects presence and activates the cycle.
3D measurement and weighing
Simultaneous capture of dimensions (length, width, height) and weight. ±3 cm measurement and ±500 g weighing precision.
Automatic photography
4K cameras capture images from multiple angles. Complete visual documentation for traceability and evidence.
Rules analysis and validation
The system applies configured rules: weight limits, maximum dimensions, load stability, and business criteria.
Result and anomaly alert
If an issue is detected, an automatic alert is generated. The complete record is available in the system for review and export.
Key features
High-performance industrial dimensioning technology
Large-format measurement
Dimensioning from 30×30×30 cm up to 240×240×240 cm. Covers Euro and US pallets, half pallets, cages, drums and high-volume loads without changing equipment.
High-precision weighing
Integrated industrial scale with 2,000 kg capacity. Simultaneous weighing without additional steps in the operational flow.
4K visual capture
Camera system with LED lighting for automatic photography. High-resolution images from multiple angles.
Intelligent anomaly detection
Algorithms that identify overweight, oversize, and load instability in real time. Prevention before dispatch.
CE certified · IP54
Designed for demanding industrial environments. Dust and splash protection, continuous 24/7 operation.
Universal integration
REST/JSON API, Gigabit Ethernet connectivity and TCP/IP protocol compatibility. Ready to connect with ERP, WMS, and TMS.
Key benefits
Measurable results from day one
Issue prevention
Detects anomalies before dispatch. Avoids rejections, returns, and penalties.
Cost reduction
Eliminates costs from overweight, oversize, and documentation errors.
Total operational control
Complete visibility of every pallet: measurements, weight, status, and validation history.
Reliable dimensional data
Accurate, automatic dimensions and weights for volumetric billing, load planning and carrier negotiation.
Full automation
No manual intervention. The system measures, weighs, photographs, and validates autonomously.
Visual evidence and traceability
4K photographs and complete records for audits, claims, and certifications.
Transport optimization
Precise volumetric data to calculate real occupancy and reduce unnecessary shipments.
Frictionless integration
Open API and standard connectors. Adapts to your operations without changing your processes.
Customer story

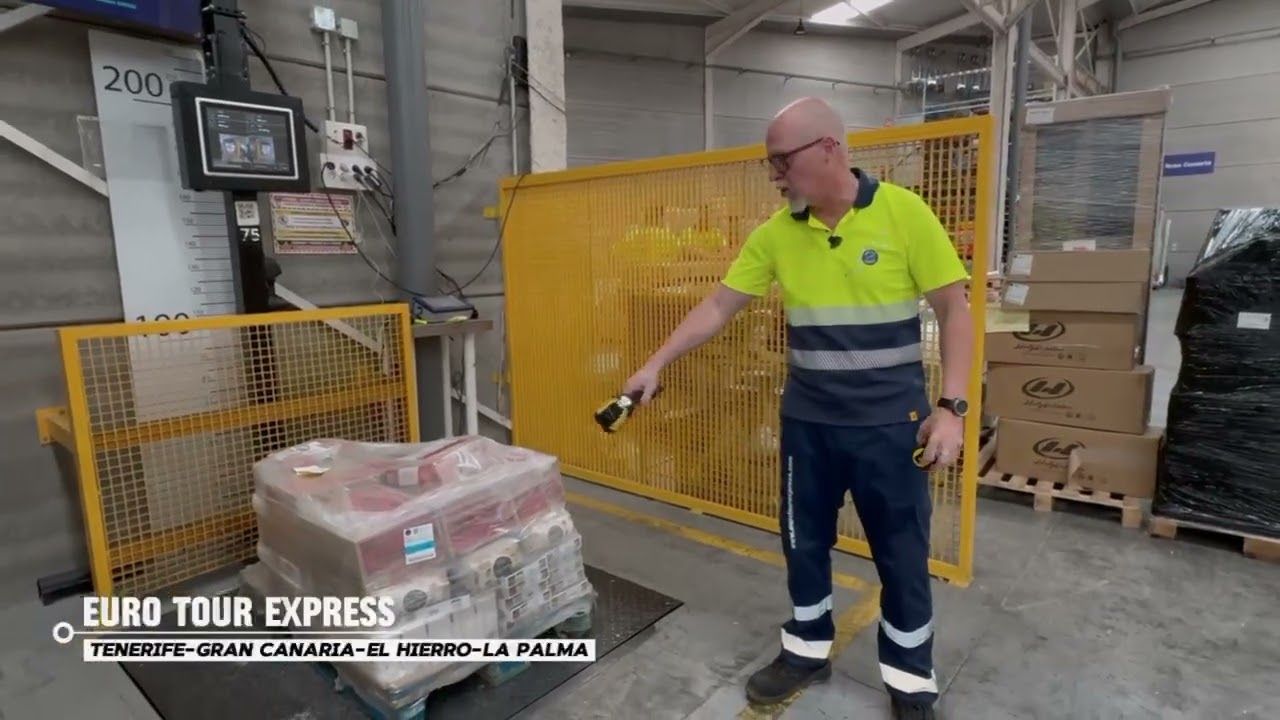

EURO TOUR EXPRESS measures pallets and boxes without slowing dispatch
EURO TOUR EXPRESS, a transport and parcel operator, added PalletVision to its dispatch area to measure and weigh both pallets and loose parcels. In this video their team explains what the process looked like before, what changed once dimensional capture was automated, and how it was integrated into their daily operation.
Playing the video will load content from YouTube.
Technical specifications
PalletVision dimensioner datasheet
| Minimum size | 30 × 30 × 30 cm |
|---|---|
| Maximum size | 240 × 240 × 240 cm |
| Precision | ±3 cm |
| Capacity | 2,000 kg |
|---|---|
| Precision | ±500 g |
| Time | <2 s |
| Resolution | 4K |
|---|---|
| Angles | 360° |
| Lighting | LED |
| Overweight | Yes |
|---|---|
| Oversize | Yes |
| Stability | Yes |
| Space req. | 300 × 300 cm |
|---|---|
| Height | 350 cm |
| Power supply | 240V · CE · IP54 |
| Ethernet | Gigabit |
|---|---|
| Protocols | TCP/IP |
| API | REST / JSON |
System integration
Connect PalletVision with your ecosystem
PalletVision integrates with the most commonly used management systems in logistics and industry. Documented REST/JSON API, Gigabit Ethernet connectivity, and technical support to ensure a smooth deployment.
ERP
Automatic synchronization of weighing, dimension, and validation data with your ERP. Compatible with SAP, Oracle, Microsoft Dynamics, and more.
WMS
Real-time data transmission to your warehouse management system. Automatic update of inbound and outbound records.
TMS
Volumetric and weight data for load optimization and transport route planning.
API REST
Fully documented REST/JSON API for integration with any proprietary or third-party software.
Use cases
Applications in real operations
Warehouse dispatch control
Automatic validation of every pallet before departure. Overweight and oversize detection with photographic evidence of condition.
Goods reception
Automatic verification that received pallets meet agreed conditions. Weight, dimension, and visual condition recorded on the spot.
Transport optimization
Precise volumetric data to calculate real truck and container occupancy. Reduction of partial shipments and freight costs.
Traceability and audit
Complete, auditable record of every processed pallet: measurements, weight, photographs, validation result, date, and time.
Frequently asked questions
Pallet measurement
A pallet dimensioner is a system that automatically measures the length, width and height of a pallet to calculate its volume. When it also weighs the load and captures its barcode or image it is called a DWS system (Dimensioning, Weighing, Scanning). It replaces manual measurement with a tape measure, which is slow, hard to repeat and one of the main sources of error in freight billing.
With static measurement the pallet pauses briefly in the measuring station, which allows maximum accuracy at a far lower installation cost. With dynamic measurement the pallet is measured while moving on a conveyor or forklift. PalletVision works statically with a cycle under 2 seconds, which in practice does not create a bottleneck in a dispatch area.
Euro pallets (1200×800), US pallets (1200×1000), half pallets, cages, drums, loose parcels and custom configurations. Computer vision adapts to irregular loads, overhangs, transparent film and black shrink wrap, materials that typically cause errors in systems based on a single laser sensor.
Yes. PalletVision exposes a documented REST/JSON API and Gigabit Ethernet connectivity over TCP/IP. It is ready to send dimensions, weight, photographs and validation results to SAP, Microsoft Dynamics, Oracle NetSuite, Sage and any WMS or TMS with an API, including our own LogisPro TMS.
PalletVision generates the dimensional and weight data you need to apply volumetric or dimensional-weight rates, together with the photographic evidence that backs up any later claim. If your case requires legal metrology for billing, tell us and we will work out the certified-scale configuration you need.
PalletVision
PalletVision delivers ±3 cm on volumetric dimensioning and ±500 g on weighing, with a full cycle under 2 seconds. That is the right accuracy for load optimisation, dispatch control and volumetric pricing in logistics and industry.
PalletVision measures from 30×30×30 cm up to 240×240×240 cm in a single format, with no versions or configurations to choose from. That range covers virtually every warehouse and road transport configuration: Euro and US pallets, half pallets, cages, drums and high-volume loads.
The station is installed and commissioned in a matter of hours, not days. It only needs roughly 300×300 cm of free floor space with 350 cm of clearance, a 240 V supply and an Ethernet connection. No civil works, no changes to your warehouse layout, and it is calibrated and measuring the same day.
The system raises an automatic alert and applies the rules you have configured: it can reject the pallet, flag it for review or route it based on customer, destination, weight or dimensions. Every incident is logged with its photograph and timestamp.
Yes. The 4K images are stored securely, in the cloud or on premise depending on your data policy, and stay linked to the pallet record. They are the evidence that settles claims for damaged goods or disputed dimensions.
PalletVision is CE certified with IP54 protection and designed for continuous operation in industrial environments with dust and splashes. It includes automatic diagnostics and preventive alerts, so maintenance comes down to periodic cleaning of the optics.
The price depends on your daily pallet volume and the level of integration with your systems. We analyse your operation, calculate the expected return from your own dispatch data and send you a fixed proposal at no commitment.
